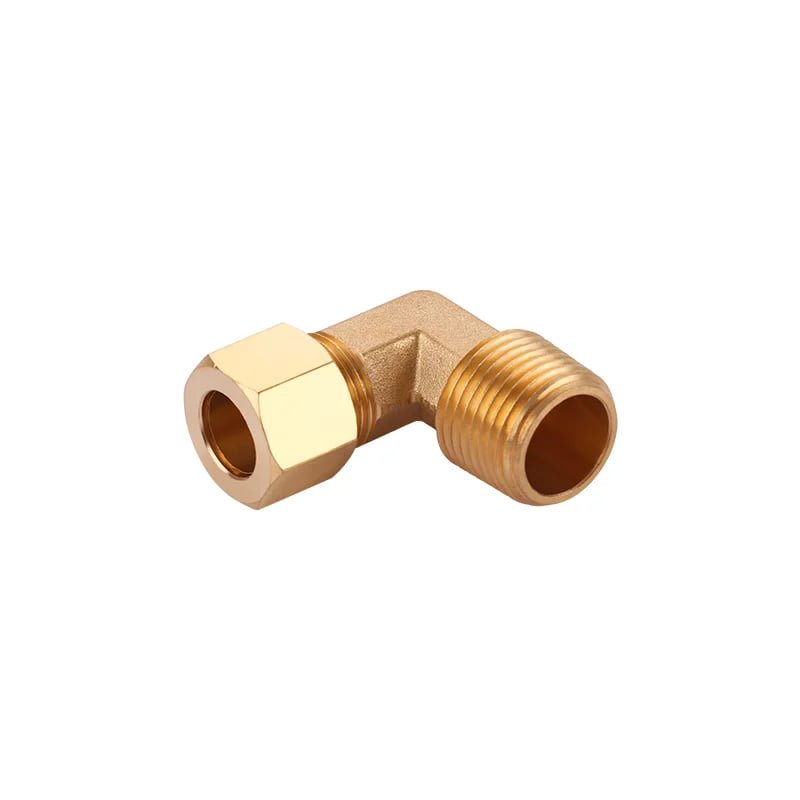

COMPRESSION 90-DEGREE MALE ELBOW OEM#69
Model: RP7009
♦Premium Brass Material: High-quality brass features wear resistance, corrosion resistance, high compression strength, durability, low magnetic permeability and good high-temperature ductility.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).
♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.
♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).
♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.
♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
ISO_9001
ISO 9001 & DOT Certified
Quote within 12 hours
Flexible MOQ
Product Specifications
| Specification | Value | OEM Reference |
|---|---|---|
| RP7009-T6-M4 | Compression 90° Male Elbow (T3/16xM1/8) | 169C-3-2;69-3A |
| RP7009-T6-M8 | Compression 90° Male Elbow (T3/16xM1/4) | 169C-3-4;69-3B |
| RP7009-T8-M4 | Compression 90° Male Elbow (T1/4xM1/8) | 169C-4-2;69x4;69-4A |
| RP7009-T8-M8 | Compression 90° Male Elbow (T1/4xM1/4) | 169C-4-4;69x4x4;69-4B |
| RP7009-T8-M12 | Compression 90° Male Elbow (T1/4xM3/8) | 169C-4-6;69x4x6;69-4C |
| RP7009-T8-M16 | Compression 90° Male Elbow (T1/4xM1/2) | 169C-4-8;69-4D |
| RP7009-T10-M4 | Compression 90° Male Elbow (T5/16xM1/8) | 169C-5-2;69-5A |
| RP7009-T10-M8 | Compression 90° Male Elbow (T5/16xM1/4) | 169C-5-4;69-5B |
| RP7009-T10-M12 | Compression 90° Male Elbow (T5/16xM3/8) | 169C-5-6;69-5C |
| RP7009-T10-M16 | Compression 90° Male Elbow (T5/16xM1/2) | 169C-5-8;69-5D |
| RP7009-T12-M4 | Compression 90° Male Elbow (T3/8xM1/8) | 169C-6-2;69x6x2;69-6A |
| RP7009-T12-M8 | Compression 90° Male Elbow (T3/8xM1/4) | 169C-6-4;69x6;69-6B |
| 169C-6-4;69x6;69-6B | Compression 90° Male Elbow (T3/8xM3/8) | 169C-6-6;69x6x6;69-6C |
| RP7009-T12-M16 | Compression 90° Male Elbow (T3/8xM1/2) | 169C-6-8;69x6x8;69-6D |
| RP7009-T16-M8 | Compression 90° Male Elbow (T1/2xM1/4) | 169C-8-4;69x8x4;69-8B |
| RP7009-T16-M12 | Compression 90° Male Elbow (T1/2xM3/8) | 169C-8-6;69x8;69-8C |
| RP7009-T16-M16 | Compression 90° Male Elbow (T1/2xM1/2) | 169C-8-8;69x8x8;69-8D |
| RP7009-T16-M24 | RP7009-T16-M24 | 169C-8-12;69-8E |
| RP7009-T20-M16 | Compression 90° Male Elbow (T5/8xM1/2) | 169C-10-8;69x10;69-10D |
Certifications & Standards
ISO 9001
ISO 9001 quality management system certified. Full-process traceability from raw material to shipment.
Packaging & MOQ
Packaging Method
PE Bag
Minimum Order Qty
100pcs
Request a Quote
Factory-direct pricing for COMPRESSION 90-DEGREE MALE ELBOW OEM#69.
ISO 9001 & DOT Certified
100% inspected before shipping
Fast Response
Detailed quotes within 12 hours
Flexible MOQ
Small batches to full containers
