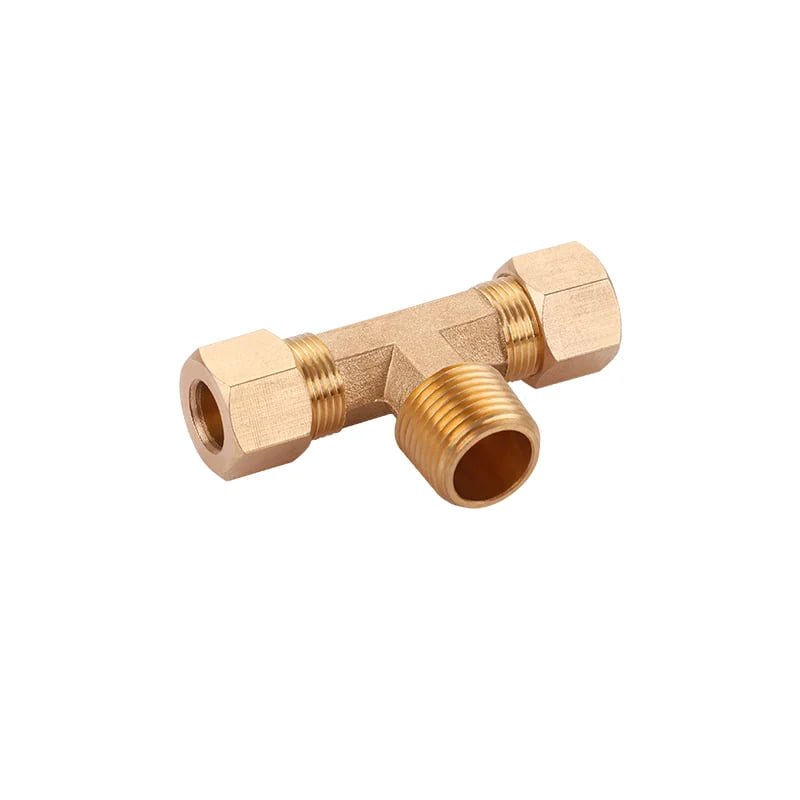

COMPRESSION TEE, MALE PIPE THREAD ON BRANCH
Model: RP7013
♦Premium Brass Material: High-quality brass features wear resistance, corrosion resistance, high compression strength, durability, low magnetic permeability and good high-temperature ductility.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).
♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.
♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).
♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.
♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
ISO_9001
ISO 9001 & DOT Certified
Quote within 12 hours
Flexible MOQ
Product Specifications
| Specification | Value | OEM Reference |
|---|---|---|
| RP7013-T6-M4 | Compression Male Run Tee (T3/16xM1/8) | 72-3A |
| RP7013-T8-M4 | Compression Male Run Tee (T1/4xM1/8) | 72-4A |
| RP7013-T8-M8 | Compression Male Run Tee (T1/4xM1/4) | 72-4B |
| RP7013-T10-M4 | Compression Male Run Tee (T5/16xM1/8) | 72-5A |
| RP7013-T10-M8 | Compression Male Run Tee (T5/16xM1/4) | 72-5B |
| RP7013-T12-M8 | Compression Male Run Tee (T3/8xM1/4) | 72-6B |
| RP7013-T12-M12 | Compression Male Run Tee (T3/8xM3/8) | 72-6C |
| RP7013-T16-M12 | Compression Male Run Tee (T1/2xM3/8) | 72-8C |
| RP7013-T16-M16 | Compression Male Run Tee (T1/2xM1/2) | 72-8D |
Certifications & Standards
ISO 9001
ISO 9001 quality management system certified. Full-process traceability from raw material to shipment.
Packaging & MOQ
Packaging Method
PE Bag
Minimum Order Qty
100pcs
Request a Quote
Factory-direct pricing for COMPRESSION TEE, MALE PIPE THREAD ON BRANCH.
ISO 9001 & DOT Certified
100% inspected before shipping
Fast Response
Detailed quotes within 12 hours
Flexible MOQ
Small batches to full containers
