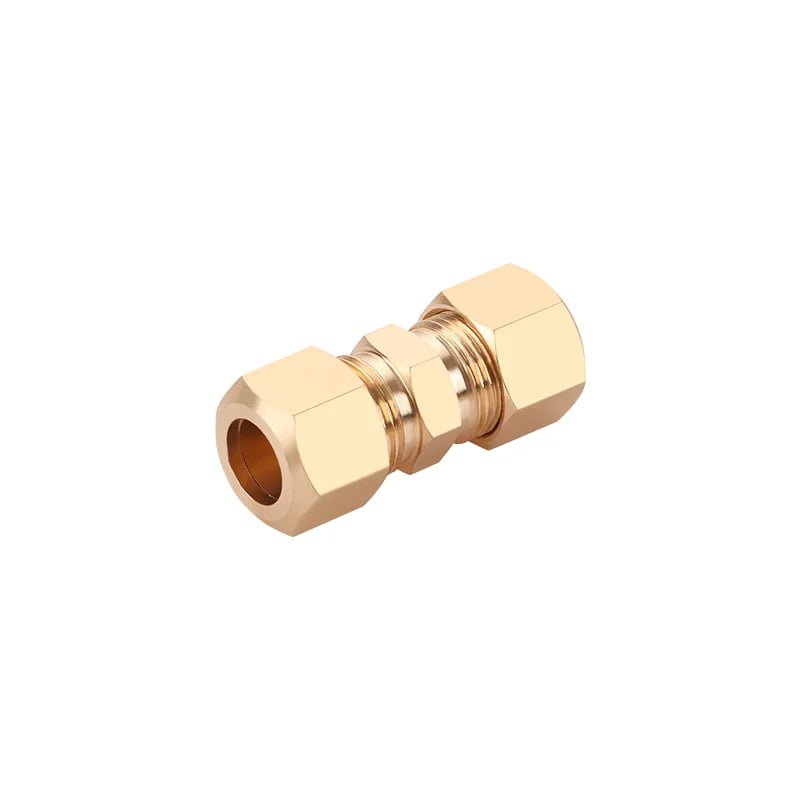

COMPRESSION UNION OEM#62
Model: RP7004

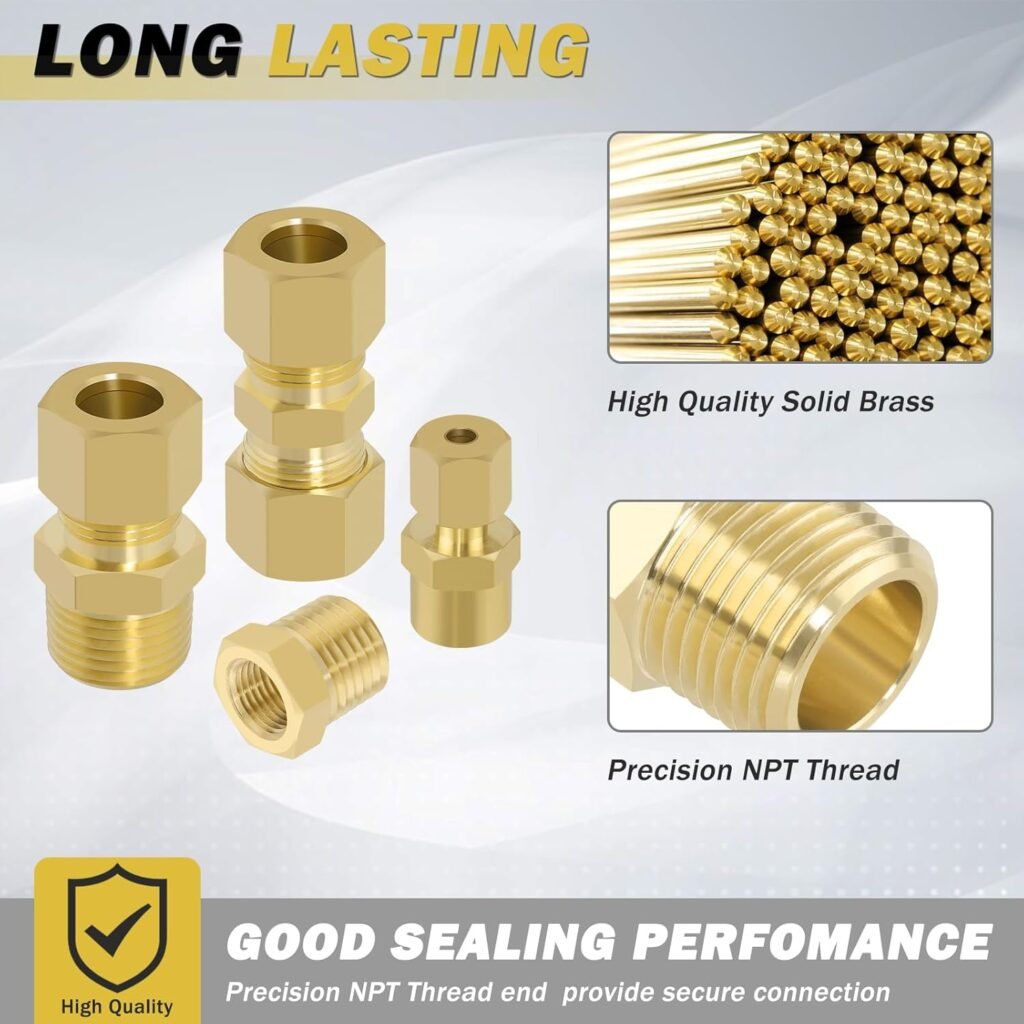

♦Premium Brass Material: High-quality brass features wear resistance, corrosion resistance, high compression strength, durability, low magnetic permeability and good high-temperature ductility.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).

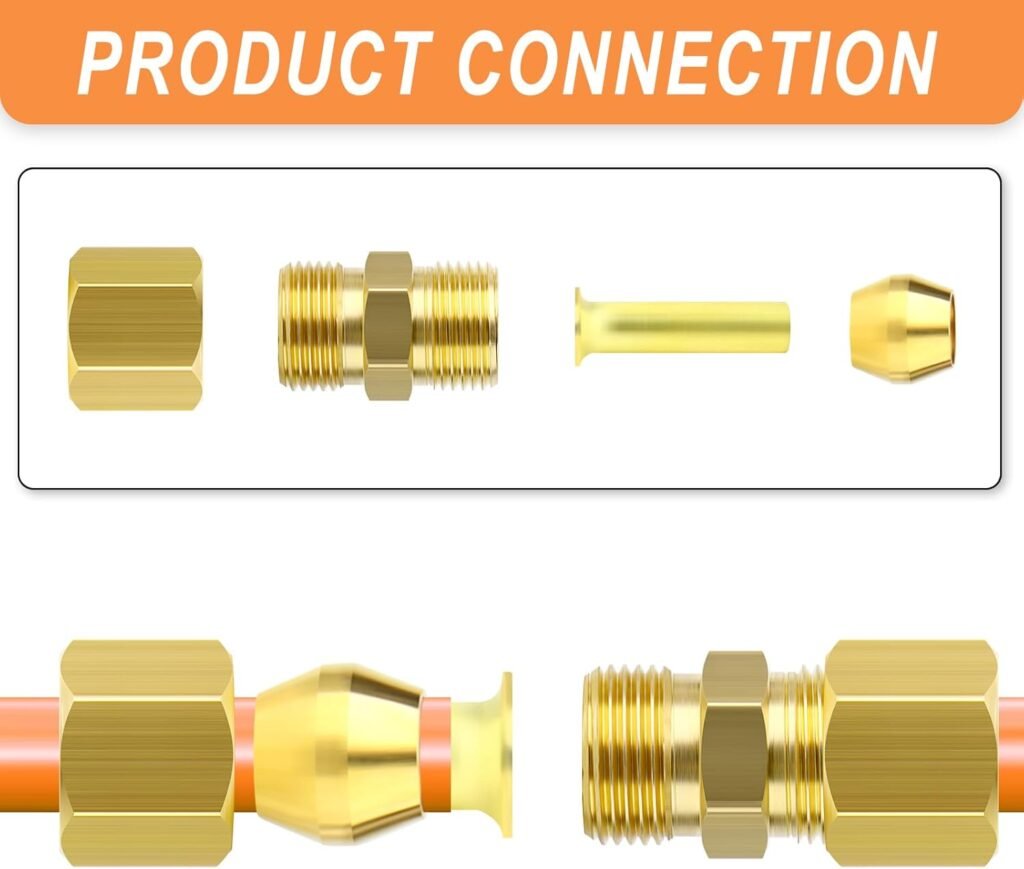

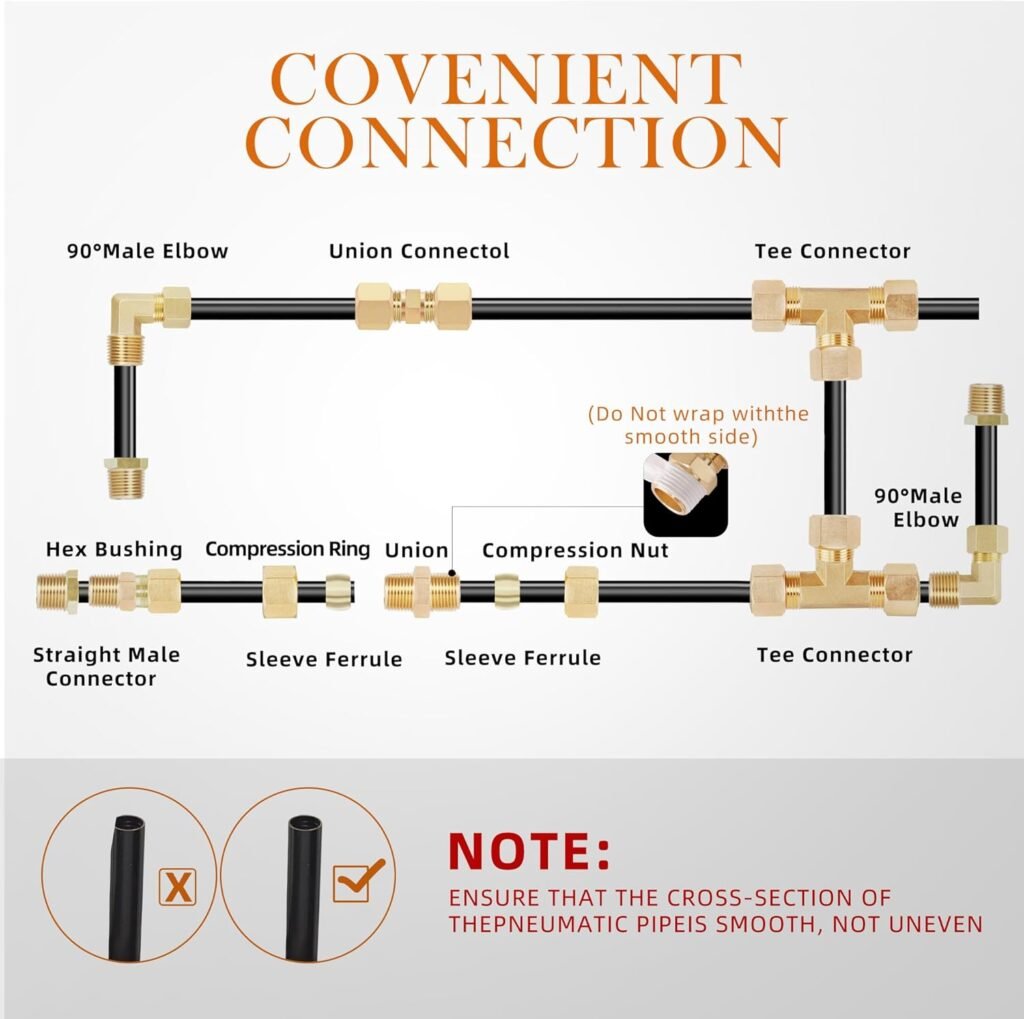

♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.

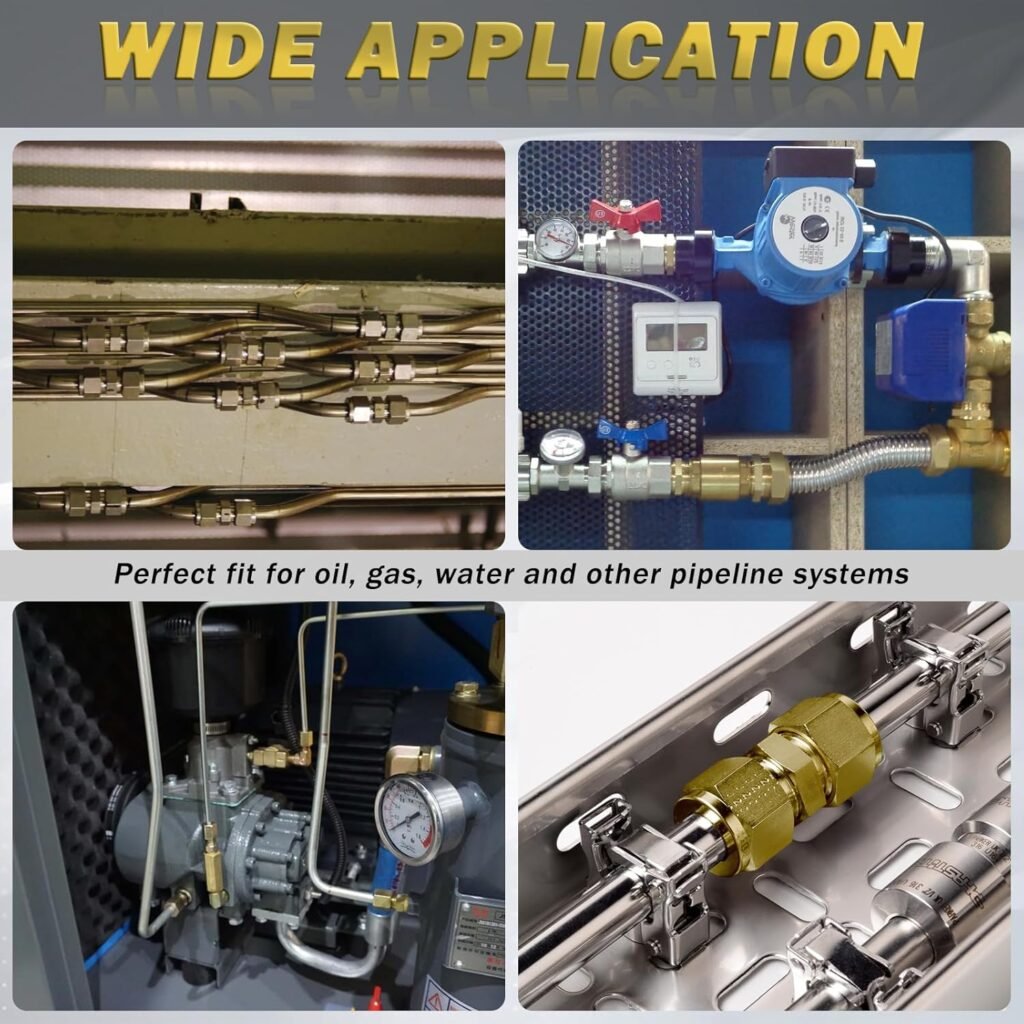

♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
♦Wide Pressure & Temperature Range: Max working pressure up to 200PSI; applicable temperature from -53°C to 121°C (-65°F to 250°F).
♦Easy Installation: No flaring, soldering or extra tubing preparation required. Compatible with copper, brass, aluminum and plastic tubing; fitted with standard short nuts, ideal for low & medium-pressure pipelines without severe vibration.
♦Wide Application: Compliant with ASA, ASME and SAE standards. Excellent sealing and reusability, resistant to temperature and pressure. Suitable for oil, gas, water and other corrosive & non-corrosive pipeline systems.
ISO_9001
ISO 9001 & DOT Certified
Quote within 12 hours
Flexible MOQ
Product Specifications
| Specification | Value | OEM Reference |
|---|---|---|
| RP7004-T4 | Compression Union T1/8 | 62C-2;62x2;62-2 |
| RP7004-T6 | Compression Union T3/16 | 62C-3;62x3;62-3 |
| RP7004-T8 | Compression Union T1/4 | 62C-4;62x4;62-4 |
| RP7004-T10 | Compression Union T5/16 | 62C-5;62x5;62-5 |
| RP7004-T12 | Compression Union T3/8 | 62C-6;62x6;62-6 |
| RP7004-T16 | Compression Union T1/2 | 62C-8;62x8;62-8 |
| RP7004-T20 | Compression Union T5/8 | 62C-10;62x10;62-10 |
| RP7004-T24 | Compression Union T3/4 | 62C-12;62x12;62-12 |
Certifications & Standards
ISO 9001
ISO 9001 quality management system certified. Full-process traceability from raw material to shipment.
Packaging & MOQ
Packaging Method
PE Bag
Minimum Order Qty
100pcs
Request a Quote
Factory-direct pricing for COMPRESSION UNION OEM#62.
ISO 9001 & DOT Certified
100% inspected before shipping
Fast Response
Detailed quotes within 12 hours
Flexible MOQ
Small batches to full containers
