DOT PUSH TO 90-Degree Male Swivel Elbow OEM#1869S
Model: RP1002
♦ Premium Quality: Made of high-grade CA360 brass, fully DOT, FMVSS 571.106 and SAE J1131 compliant.
♦ Heavy-Duty Performance: Supports working pressure from vacuum to 800 psi, with a wide temperature range of -40°C to 93°C for stable use in harsh conditions.

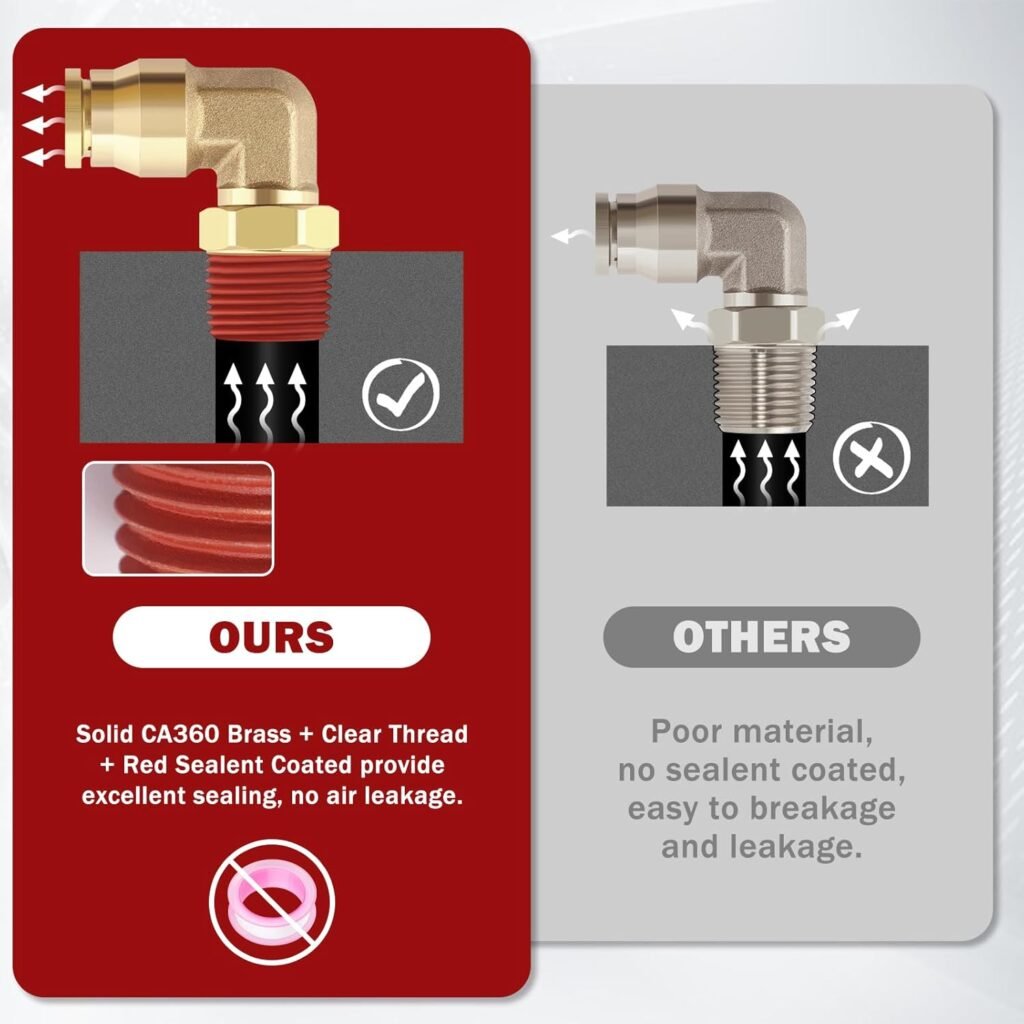

♦ Simple & Secure Installation: Quick-connect design and precise NPT threads for easy push-fit installation. Pre-applied thread sealant ensures tight leakage-proof sealing.
♦ Versatile Application: Ideal for truck, RV air brake and air suspension systems. Also suitable for industrial equipment, garden machinery, towing equipment and various air line repair & connection.
♦ Heavy-Duty Performance: Supports working pressure from vacuum to 800 psi, with a wide temperature range of -40°C to 93°C for stable use in harsh conditions.
♦ Simple & Secure Installation: Quick-connect design and precise NPT threads for easy push-fit installation. Pre-applied thread sealant ensures tight leakage-proof sealing.
♦ Versatile Application: Ideal for truck, RV air brake and air suspension systems. Also suitable for industrial equipment, garden machinery, towing equipment and various air line repair & connection.
Thread Type
NPT
Material
CA3600 BRASS
DOT
ISO_9001
ISO 9001 & DOT Certified
Quote within 12 hours
Flexible MOQ
Product Specifications
| Specification | Value | OEM Reference |
|---|---|---|
| RP1002-P4-M4 | DOT 90° Push In (P1/8 x M1/8) Swival | AQ69-DOTS-2X2 |
| RP1002-P5-M4 | DOT 90° Push In (P5/32 x M1/8) swivel | AQ69-DOTS-5/32X4 |
| RP1002-P8-M4 | DOT 90° Push In (P1/4 x M1/8) swivel | AQ69-DOTS-4X2;169PTC-4-2;1869x4S |
| RP1002-P8-M8 | DOT 90° Push In (P1/4 x M1/4) swivel | AQ69-DOTS-4X4;169PTC-4-4;1869x4x4S |
| RP1002-P8-M12 | DOT 90° Push In (P1/4 x M3/8) swivel | AQ69-DOTS-4X6;169PTC-4-6;1869x4x6S |
| RP1002-P12-M4 | DOT 90° Push In (P3/8 x M1/8) swivel | AQ69-DOTS-6X2;169PTC-6-2;1869x6x2S |
| RP1002-P12-M8 | DOT 90° Push In (P3/8 x M1/4) swivel | AQ69-DOTS-6X4;169PTC-6-4;1869x6S |
| RP1002-P12-M12 | DOT 90° Push In (P3/8 x M3/8) swivel | AQ69-DOTS-6X6;169PTC-6-6;1869x6x6S |
| RP1002-P12-M16 | DOT 90° Push In (P3/8 x M1/2) swivel | AQ69-DOTS-6X8;169PTC-6-8;1869x6x8S |
| RP1002-P16-M8 | DOT 90° Push In (P1/2 x M1/4) swivel | AQ69-DOTS-8X4;169PTC-8-4;1869x8x4S |
| RP1002-P16-M12 | DOT 90° Push In (P1/2 x M3/8) swivel | AQ69-DOTS-8X6;169PTC-8-6;1869x8S |
| RP1002-P16-M16 | DOT 90° Push In (P1/2 x M1/2) swivel | AQ69-DOTS-8X8;169PTC-8-8; 1869x8x8S |
| RP1002-P20-M12 | DOT 90° Push In (P5/8 x M3/8) swivel | AQ69-DOTS-10X6;169PTC-10-6;1869x10x6S |
| RP1002-P20-M16 | DOT 90° Push In (P5/8 x M1/2) swivel | AQ69-DOTS-10X8;169PTC-10-8;1869x10S |
| RP1002-P24-M12 | DOT 90° Push In (P3/4 x M3/8) swivel | AQ69-DOTS-12X6 |
| RP1002-P24-M126 | DOT 90° Push In (P3/4 x M1/2) swivel | AQ69-DOTS-12X8 |
Thread Type
NPT
Material
CA3600 BRASS
Certifications & Standards
DOT
U.S. Department of Transportation certified. Complies with FMVSS 106 brake hose standards.
ISO 9001
ISO 9001 quality management system certified. Full-process traceability from raw material to shipment.
Packaging & MOQ
Packaging Method
PE Bag
Minimum Order Qty
100
Request a Quote
Factory-direct pricing for DOT PUSH TO 90-Degree Male Swivel Elbow OEM#1869S.
ISO 9001 & DOT Certified
100% inspected before shipping
Fast Response
Detailed quotes within 12 hours
Flexible MOQ
Small batches to full containers
